MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24

MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24
Move your mouse over image or click to enlarge
MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24 MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24 MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24 MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24 MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24 MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24 MerCruiser 17-99207 Front Rear Trim Cylinder Arm Pivot Pins R MR 1983-86 3/8-24
$ 40.00
-Free Shipping On ALL Orders-

Fast & Free Shipping on All Orders!

14-Day Return Policy

--

Item Details

  • MerCruiser Alpha One Drive / R / MR / Gen I Front & Rear Trim Anchor Pins / Washers / Nuts (1983-1986) but also fits 1987-1990 Models that would have normally had 7/16-20 Threads that sported a plastic cap on the ends.
  • Freshwater Used Parts
  • These have the 3/8-24 Threads that would have NOT been used with the Screw on Plastic Caps on the end of the trim pins..
    • These are the Early Style "R or MR" Pins that would have not been found on later models, but are still compatible with all units 1983-1990
  • Overall good condition.
  • Everything you would need here minus the rubber washers.

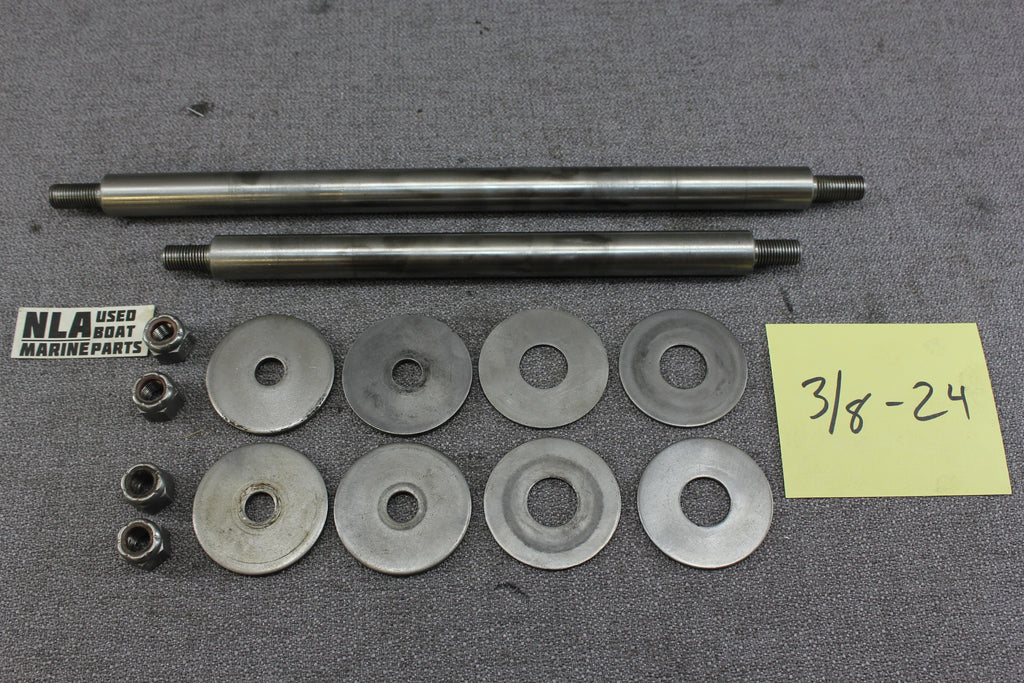

Part Numbers Included

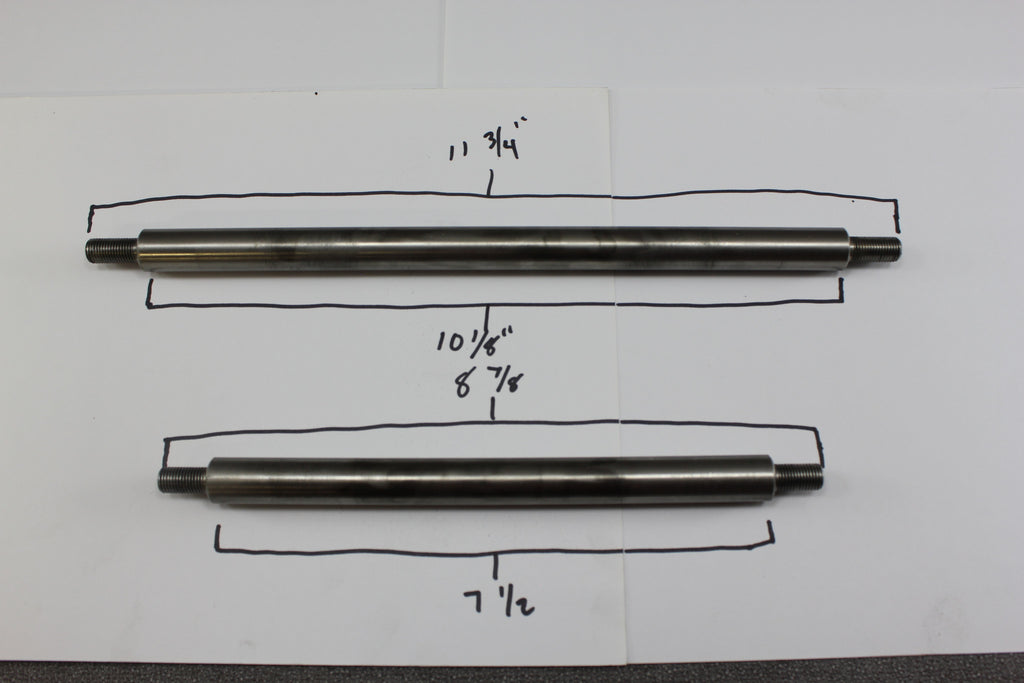

  • Long "Front" Pin ????? 17-14873A1 was the pin with 7/16-20 threads and this has 3/8-24 threads
    • Overall Length: 11-3/4"
    • Shoulder Length: 10-1/8"
    • Diameter: 5/8"
  • Short "Rear" Pin 17-99207
    • Overall Length: 8-7/8"
    • Shoulder Length 7-1/2"
    • Diameter: 5/8"

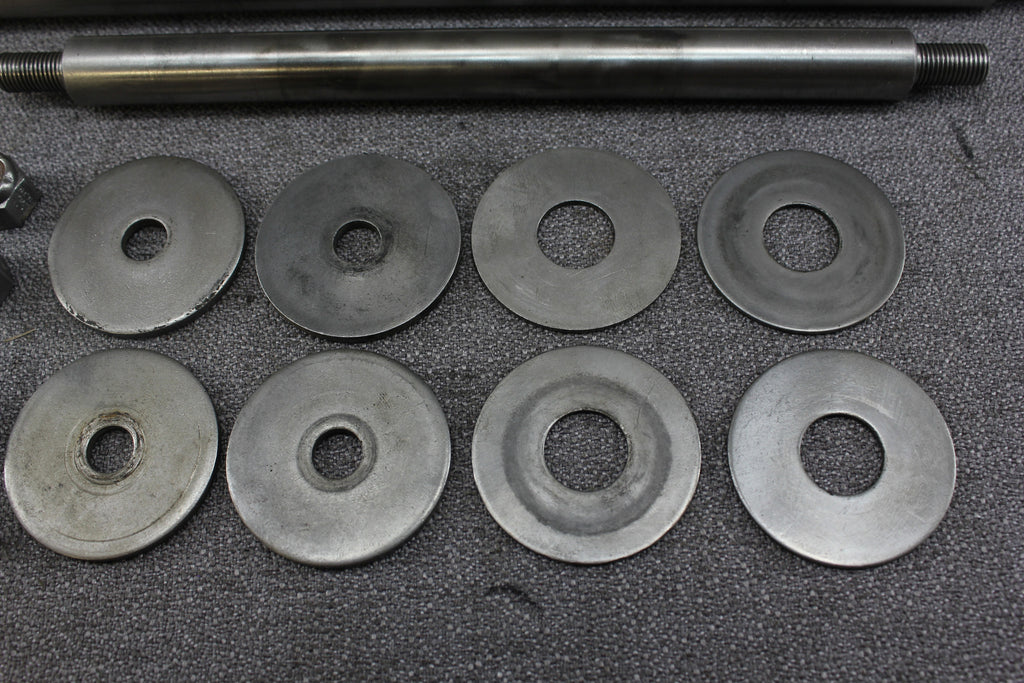

  • Washers 12-85057
  • Washers 12-85058

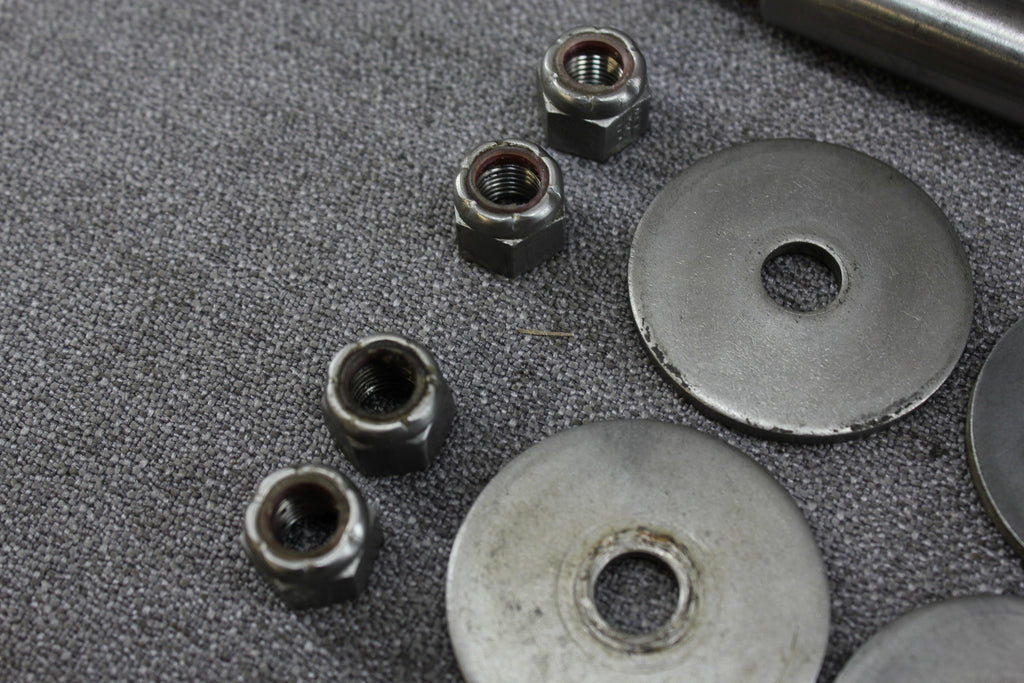

  • Nuts 11-862903

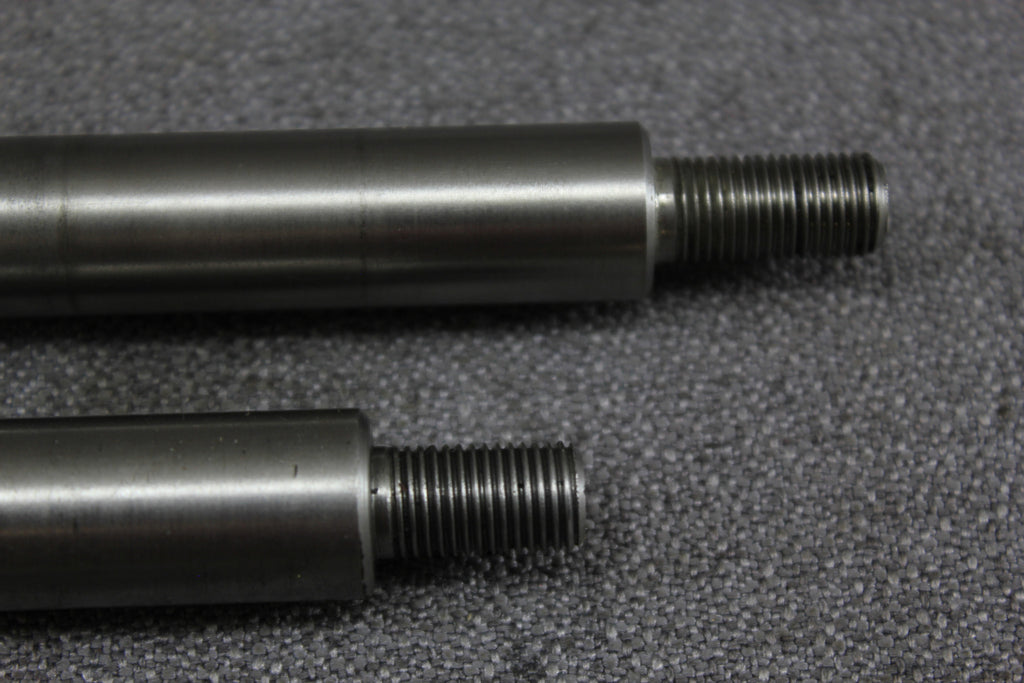

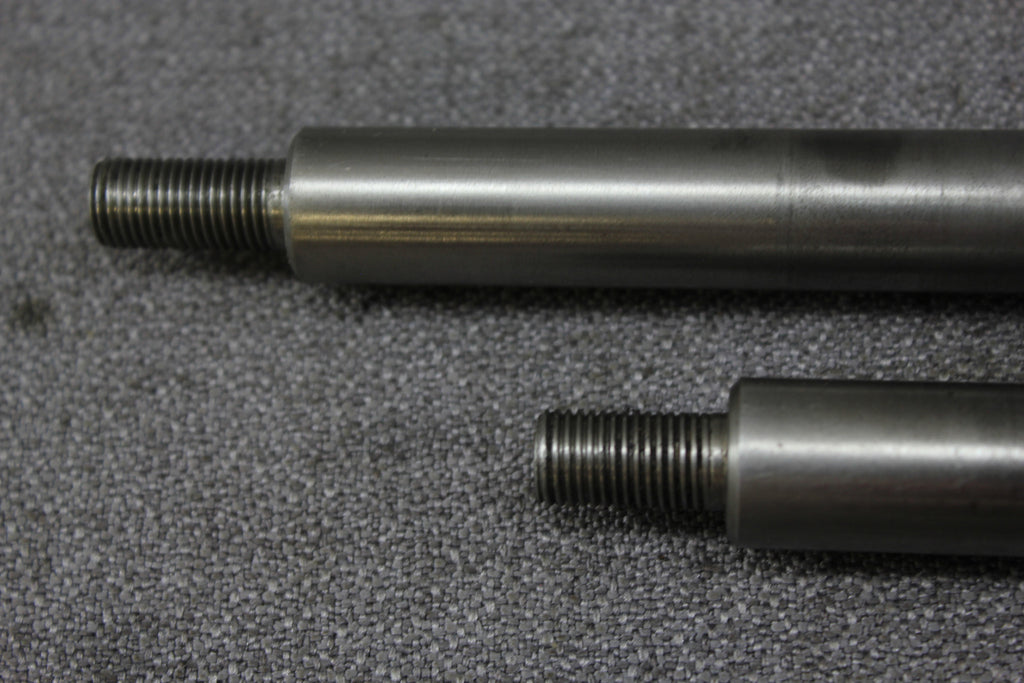

  • THREAD SIZE For BOTH Pins: 3/8-24

Compatibility

  • All MerCruiser R/MR/Alpha one Drives 1983-1990 (but usually only found on 1983-1986 drives
    • 2.5L 120hp 4cyl
    • 3.0L 140hp 4cyl
    • 3.7L 170hp 470 488 4cyl
    • 4.3L V6 262 185hp / 205hp
    • 5.0L V8 305
    • 5.7L V8 350 260hp
