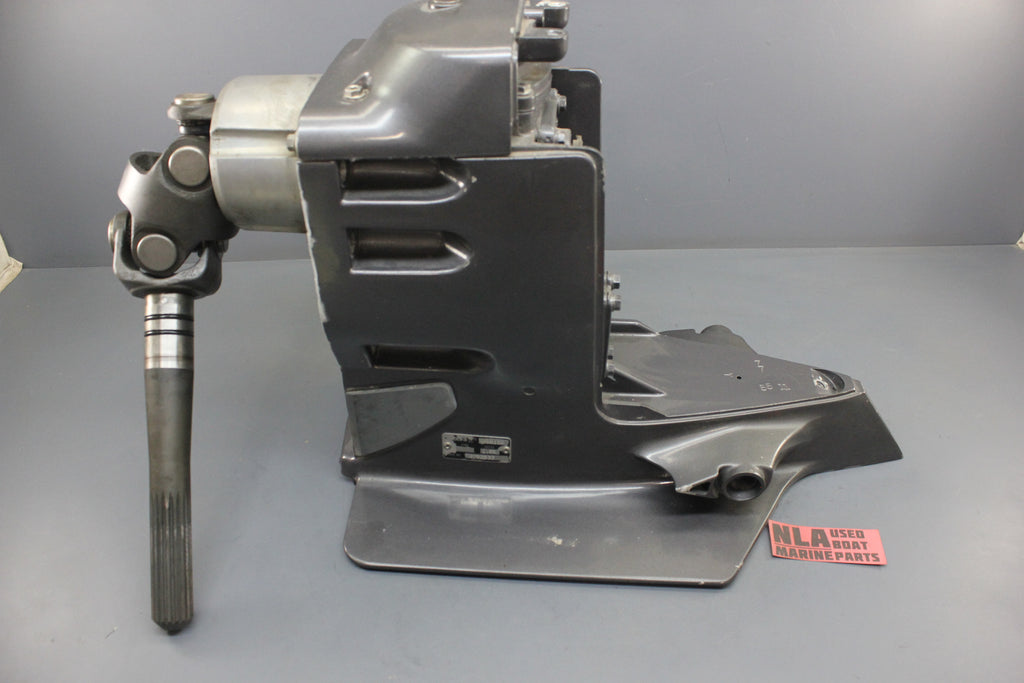

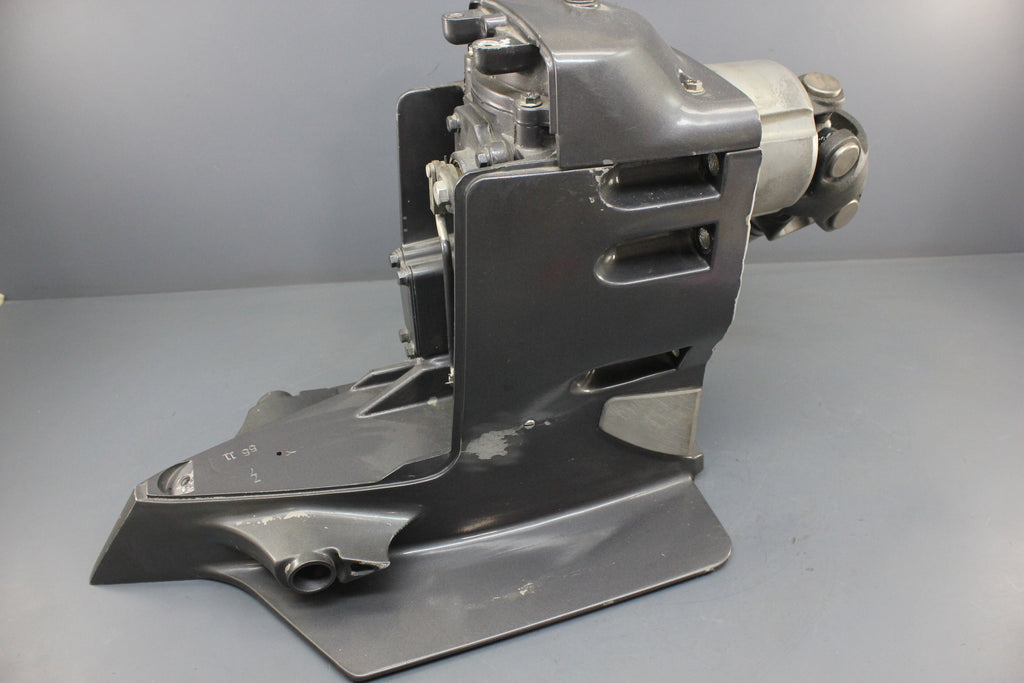

Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51

Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51
Move your mouse over image or click to enlarge
Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51 Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51 Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51 Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51 Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51 Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51 Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51 Volvo Penta 3868077 3857007 Cobra SX DP-S Upper unit Gearcase 4.3 1.66 1.43 1.51
$ 1,200.00
-Free Shipping On ALL Orders-

Fast & Free Shipping on All Orders!

14-Day Return Policy

--

Part Number(s) Included

  • Volvo Penta / OMC Joint Venture 3868077 / 3850966 / 3856181 / 3857007 Cobra SX Sterndrive Upper Gearcase Unit
  • From a 4.3L GL 1994 Model
  • 22/23 Teeth For the Upper Gears

General Application / Compatibility

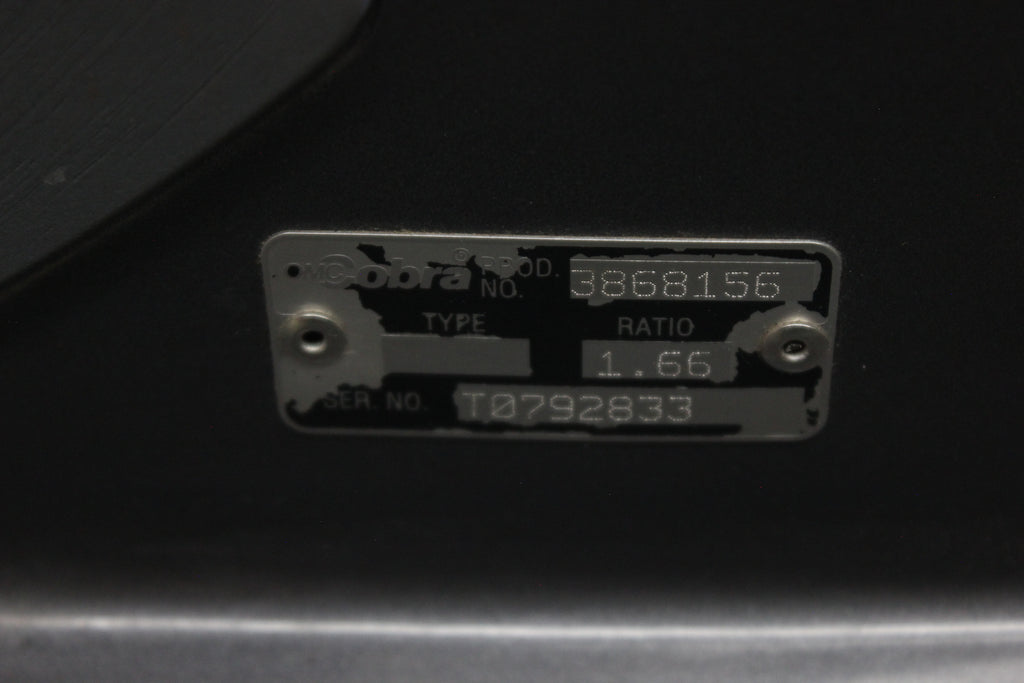

  • So 1.66 is stamped on the plate, but basically the uppers only came in 2 flavors and the lowers came in 5 flavors, 1.66 reflected the "overall" ratio after combining the upper & lower, hopefully this guide clears up any confusion.
  • Upper Unit Flavors (SX and DP-S):
    • 3857007 VP HSG AY,GEAR 22:23 (1.43, 1.51, 1.60, 1.66, 1.68, 1.78, 1.95)
    • 3857010 VP HSG AY,GEAR 21:26 (1.79, 1.89, 1.97, 2.18, 2.32)
  • Lower Unit Flavors (SX):
    • 3855692 VP G'CASE AY,SX 19:26 (1.43)
    • 3855693 VP G'CASE AY,SX 18:26 (1.51 and 1.79)
    • 3855694 VP G'CASE AY,SX 17:26 (1.60 and 1.89 )
    • 3855695 VP G'CASE AY,SX 17:27 (1.66 and 1.97 )
    • 3855696 VP G'CASE AY,SX 17:30 (2.18 only )
  • Basically this particular is one of the earliest iterations of an SX drive as this would be 1994... Allegedly pretty much anything from 1994-2006 would be the drive (SX-S / SX-C / SX-C1 / SX-C2 / SX-M) The SX-M was produced roughly 1998-2006 but most of the things were interchangeable with the earlier drives, especially when replacing as a whole unit.

Other Details

  • Freshwater Used Parts
  • Pressure Tested & Gears Inspected
  • Overall Good Condition!
  • Original Paint
