MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470

MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470
Move your mouse over image or click to enlarge
MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470 MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470 MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470 MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470 MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470 MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470 MerCruiser 98704A3 98703A3 Alpha One Power Trim Cylinders Rams Pistons Arms 470
$ 180.00
-Free Shipping On ALL Orders-

Fast & Free Shipping on All Orders!

14-Day Return Policy

Ships TODAY if you order before 12PM EST Mon-Fri

Item Details
  • Power Trim Cylinders For use with all Alpha One Units (1983-1990) Regardless of Engine (2.5L 120hp / 3.0L 140hp / 4.3L V6 / 5.0L 305 V8 / 5.7L 350 V8...etc)
  • However, THIS IS NOT XD Trim Cylinders (14035-1 & 14034-1)
    • These were used basically in for the 1983-1986 models before they started putting the XD trim arms on everything.
  • Please check what numbers are stamped on your cylinders as you will need to swap the lines from yours to these ones, or contact me and I can likely include used lines for an additional cost.

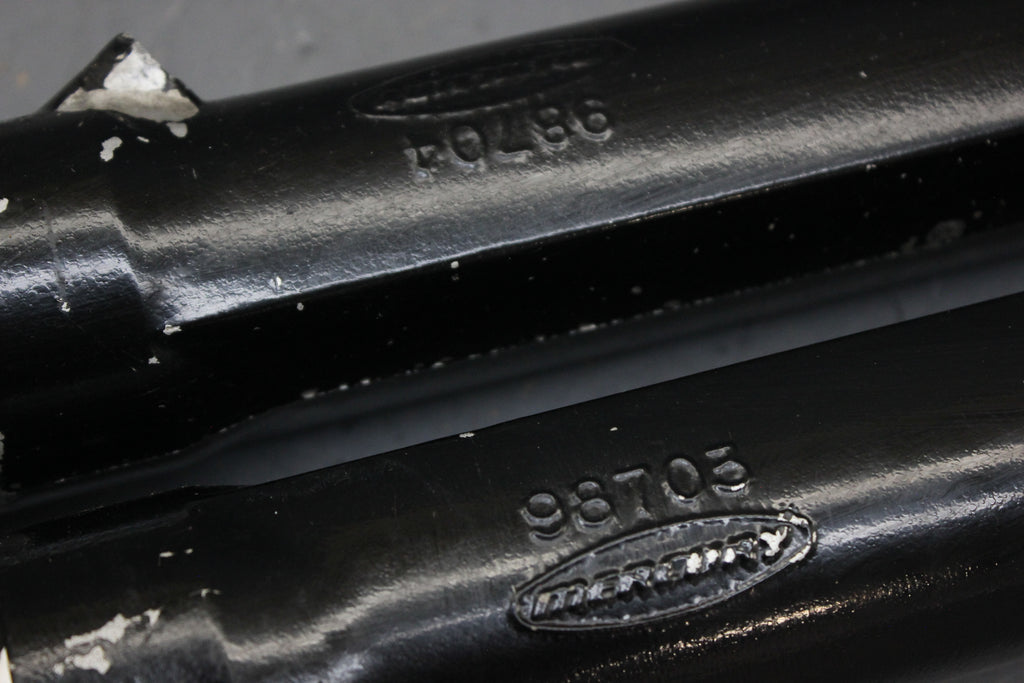

  • Stamped part numbers are 98704 & 98703
    • These are equivalent to 98704-1 & 98703-1 but are of just slightly earlier design and a bit longer.
    • Starboard Cylinder is 98704 (which is equivalent / also referenced as 98719, 98704T, 98704A10)
    • Port Cylinder is 98703 (which is equivalent / also referenced as 98718, 98703T, 98703A10)

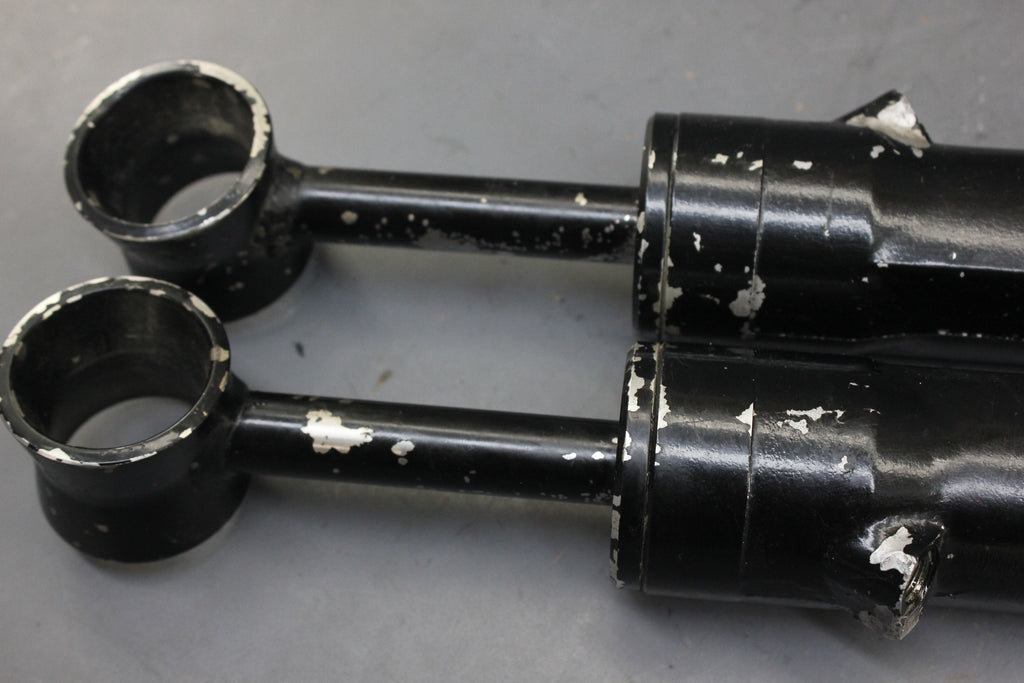

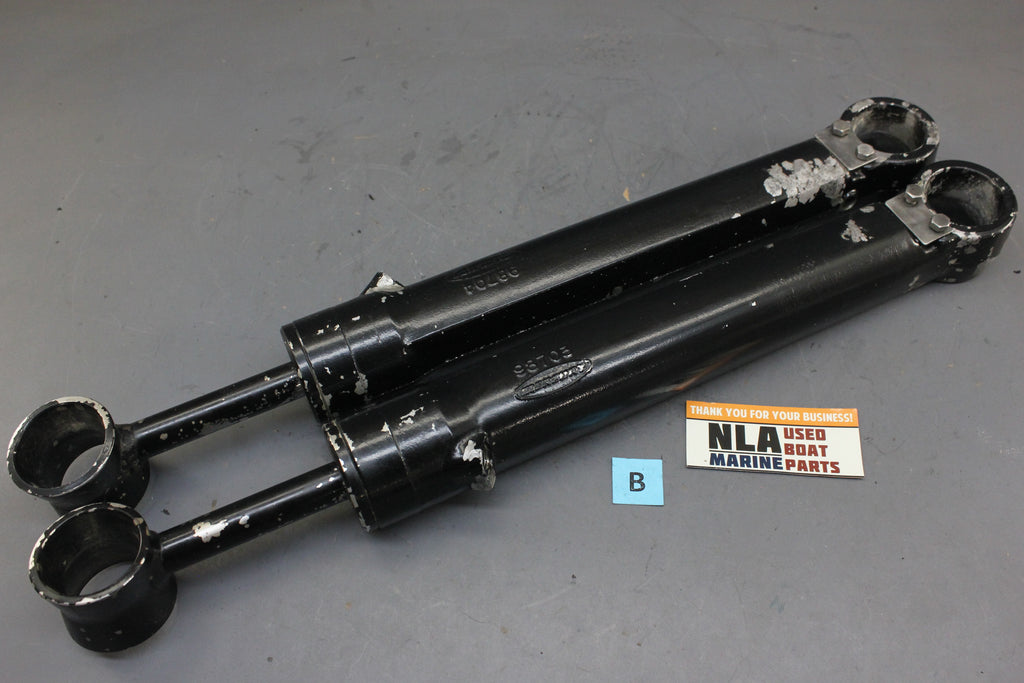

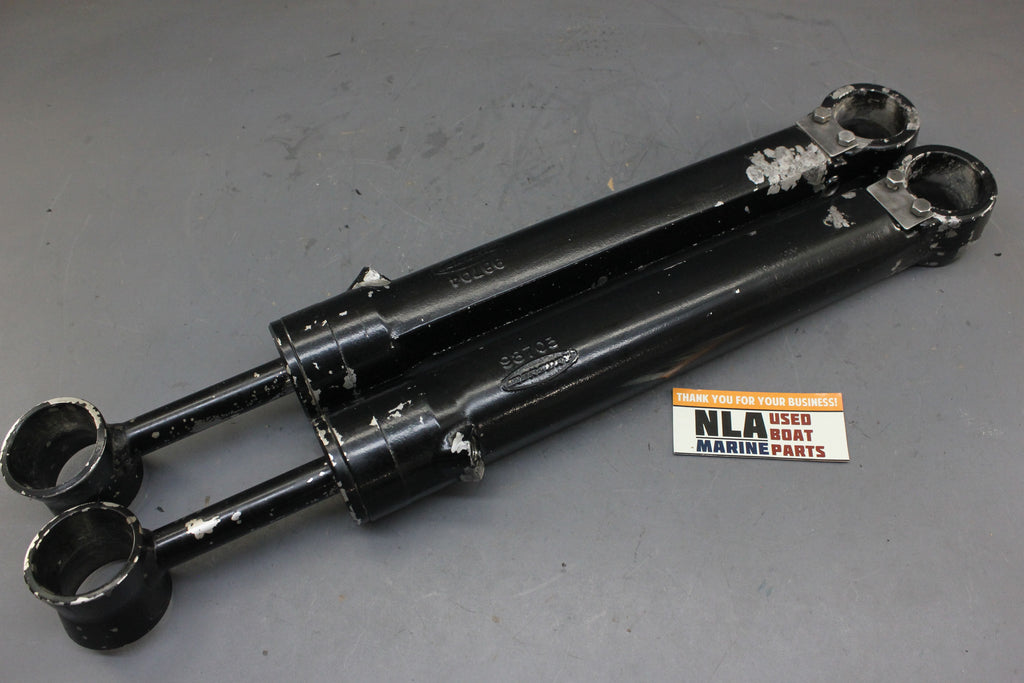

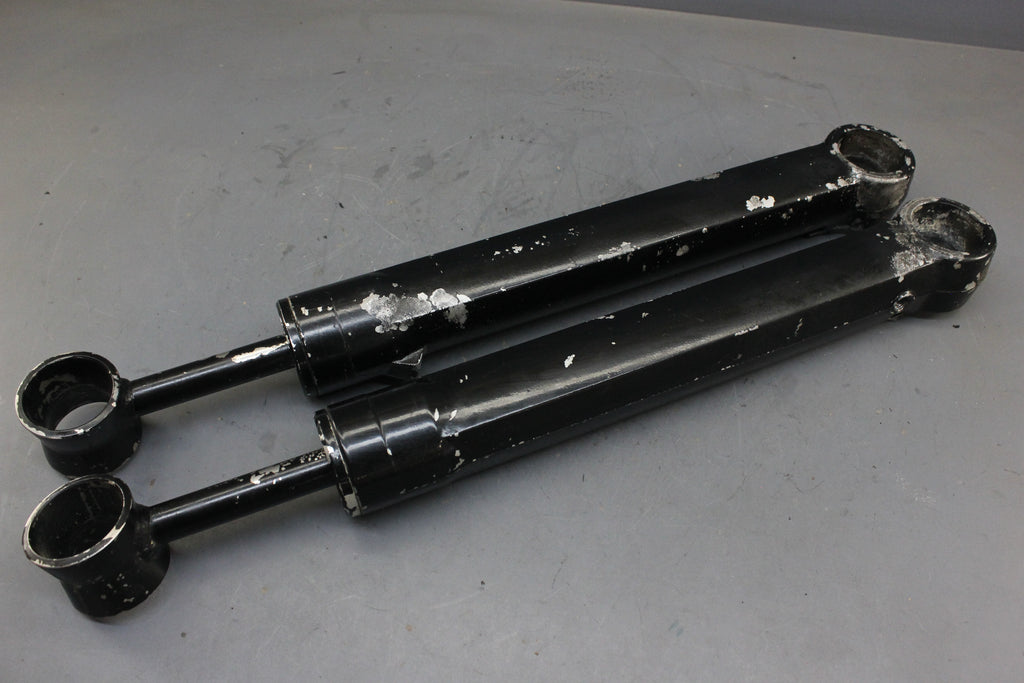

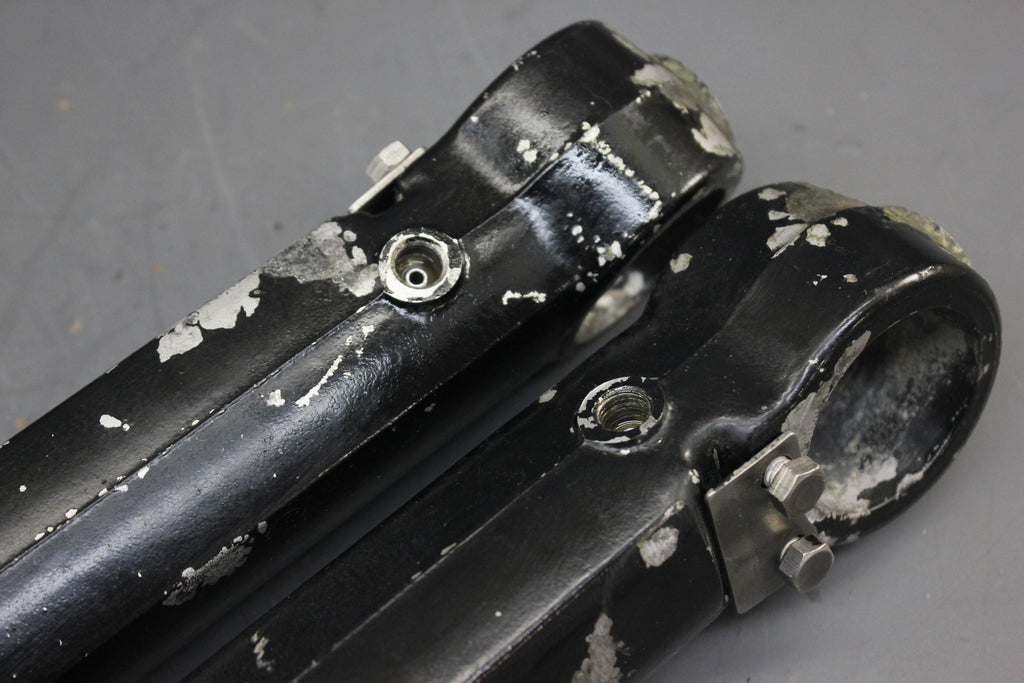

  • Price is for the PAIR exactly as pictured
  • Cleaned & Repainted
  • You will need to install your existing trim lines on these
  • Purchase with confidence!

98704 vs. 98704-1 & 98703 vs. 98703-1

  • The 98704/98703 cylinders are slightly older than the redesigned 98704-1/98703-1. These older cylinders were a bit longer overall. It is generally in your best interest to match exactly what you have already stamped on your existing cylinder(s) you are replacing.
  • The Trim lines / hoses on these are all interchangable between the 98704 & 98704-1 etc....
1983 1984 1985 1986 1987 1988 1989 1990
MerCruiser / Ford 470 488 170hp 3.7L 3.7LX 4cyl 165hp 170hp 180hp 188hp 190hp
GM 262CID V6 4.3L 4.3LX 4.3LXH 4.3LH Gen II + 205hp 185hp
GM 305 350 5.0L 5.7L V8 198hp 200hp 228hp 230hp 260hp
GM 120hp 4cyl 2.5L 153cid
GM 140hp 4cyl 3.0L 181cid
