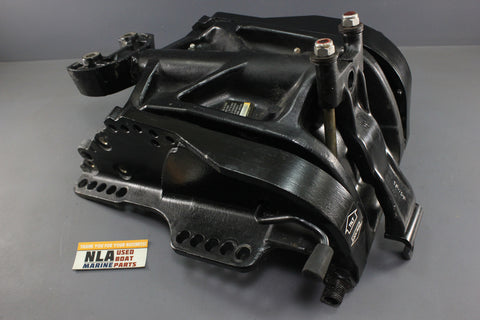

Mercury 40hp 4cyl Transom Bracket Clamp Assembly For Power Trim Models 1993-1996

Move your mouse over image or click to enlarge

Notable Part Number(s) Included (THIS WAS FOR A MANUAL TILT UNIT, BUT MANY OF THE MAJOR PIECES WERE FOUND ON THE POWER TRIM & TILT MODELS)

Mercury 3418-822865F2 Clamp Bracket Assembly (Starboard w/ Power or Manual Trim & Tilt - Electric Start)
- For Serial Number 0D182000 & Up
- Replaced By > 3418-822865T05
Mercury 3418-822866A1 Clamp Bracket Assembly (Port w/ Power or Manual Trim & Tilt - Electric Start)
- For Serial Number 0D182000 & Up
- Replaced By > 3418-822866T04
Mercury 3416-822862A1 Swivel Bracket Assembly (Long Shaft)
Mercury 19614 Tilt Tube
- Replaced By> 19614-1 > 8M0035070 > 8M0041938
Mercury 19459A3 Steering Arm Assembly
Mercury 77416T Yoke Bottom (Long)
Mercury 19615A4 Tilt Lever (Manual Tilt)

General Application / Compatibility

Removed from a 1994 Mercury 40hp 4cyl Two-Stroke (Oil-Injected) Outboard S/N 0D280104
This is (in its current configuration) would just be for the 40hp 4cyl from 1993-1996
Not completed at this time and hopefully will be added in the future. If you have any questions on compatibility please contact us or check with an online parts manual.

Other Details

Purchase with confidence!

May work with Some of the below listed:

Mercury Mariner 4cyl Outboard 30hp 40hp 45hp 50hp

1989 1990 1991 1992 1993 1994 1995 1996
