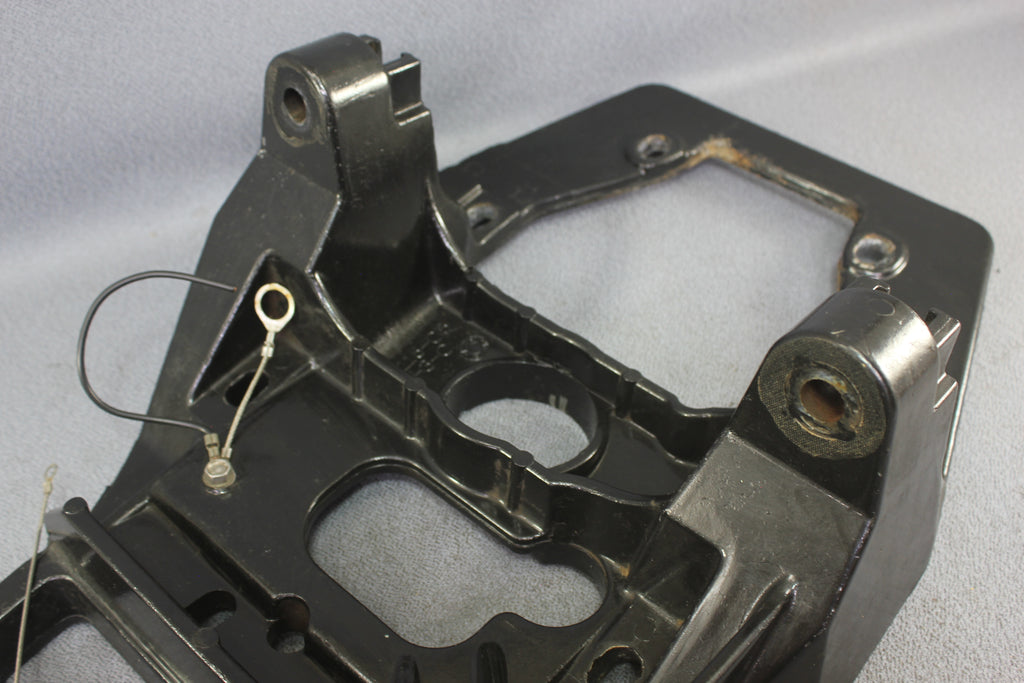

MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket

MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket
Move your mouse over image or click to enlarge
MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket MerCruiser 44117A8 Alpha 1 One Bravo Gimbal Housing Inner Transom Plate Bracket
$ 90.00
-Free Shipping On ALL Orders-

Fast & Free Shipping on All Orders!

14-Day Return Policy

--

THESE ARE STOCK PHOTOs AND YOU WILL RECIEVE ONE IN EQUAL OR BETTER CONDITION THAN THE ONE PICTURED HERE

Item Details

  • MerCruiser Part number "44117A8"
    • Generally Stamped 44116-C2 / 44116-C3 / or 44116-C5

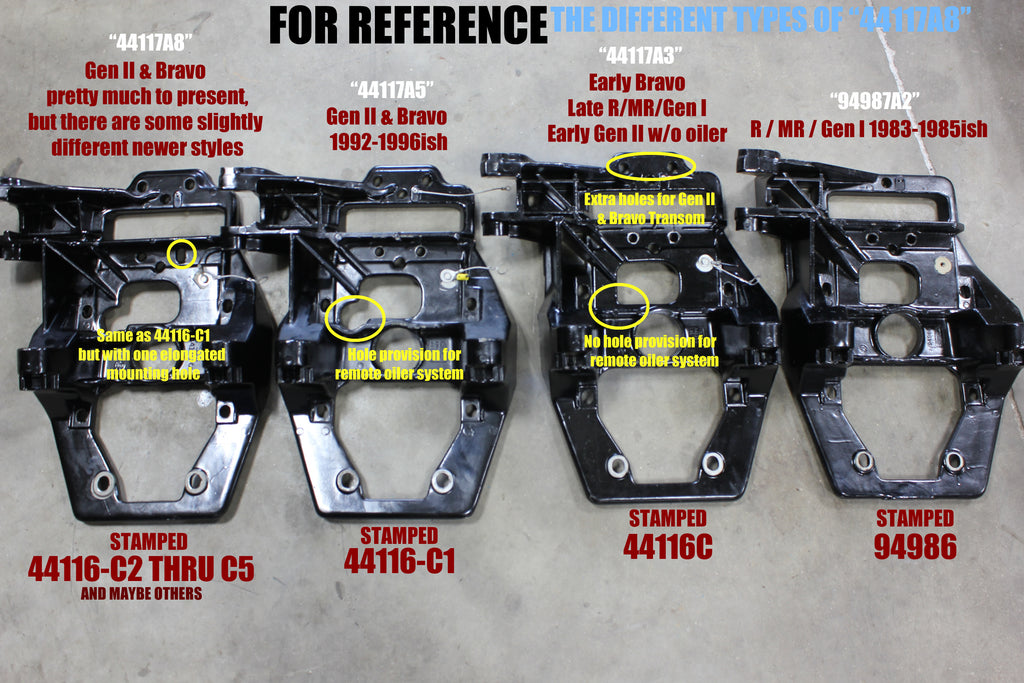

    • (SEE INFOGRAPHIC IN PHOTOS)
  • Used in many different MerCruiser Alpha One and bravo applications roughly 1992-Present (120hp, 140hp 305, 350 4.3L etc. virtually all of them as they adapted every bell housing to fit these.
  • This style of plate is very similar to 44116C, BUT 44116-C1/C2/C3/C5  had the cutout for the oil passage for Gen II models as well as the extra holes for the top of the gimbal mounting bolts. So if you have a gen 2 or a bravo application, this will be a suitable replacement whether or not you have a remote oiler system.
  • Please ensure if you are ordering this part to replace that particular number, make sure those top bolts are not being currently utilized on your boat.
  • Overall good shape
  • Purchase with confidence!
Compatible / Equivalent / Cross-Reference Part numbers
  • Replaces "94987A2" / 94986 (1983-1985ish M/R/Gen I standard plate)
  • Replaces "44117A3" / 44116C (This and possibly other is this list are pretty much identical, but they have an extra area of holes at the top of them where thru-bolted power steering units were able to go as well as  other than that they are the same in every dimension - Typically found on Early Bravo 1986-1991 & early Gen I)
  • Superseded to 8M0095951 / 8M0114816 (which are all more or less the same)
Applications
  • 2.5L 120hp
  • 3.0L 140hp,
  • 3.7L 4cyl(aka 170 470 488 etc.),
  • 4.3L, 4.3LX V6 175, 180, 185hp,
  • 5.0L 305
  • 5.7L 350 and others, please do your homework and cross reference the part numbers to mine.
  • ((BRAVO ONE)
  • ((BRAVO TWO)
  • ((BRAVO THREE)
  • ((ALPHA ONE (GEN.II) 1996-1997)
  • ((ALPHA ONE (GEN.II) 1998 AND UP)
  • ((ALPHA ONE (GEN.II) 1991-1995)
  • ((BLACKHAWK 1994-1995)
  • ((BRAVO ONE (Standard))
  • ((BRAVO TWO (Standard))
  • ((BRAVO THREE (Standard))
  • ((TRANSOM ASSEMBLY (Magnum))
  • ((TRANSOM ASSEMBLY (SmartCraft))
  • ((BRAVO X ONE)
  • ((BRAVO X TWO)
  • ((BRAVO X THREE)
  • ((BRAVO XR ONE)
  • ((BRAVO XR THREE)
  • ((BRAVO XR SPORTMASTER)
  • ((HI PERFORMANCE TRANSOM)
  • ((INTEGRATED TRANSOM)
  • ((BRAVO XZ ONE)
  • ((R/MR/ALPHA ONE (Sterndrive) 1983-1990)
  • ((R/MR/ALPHA ONE (Transom Assembly) 1983-1990)
  • (ALPHA) (ALPHA ONE SS 1986-1989)
  • (ALPHA) (SSM II/III/IV/V 1982-1995)
