MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2

MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2
Move your mouse over image or click to enlarge
MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2 MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2 MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2 MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2 MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2 MerCruiser Alpha One R MR U-Joint Assembly Yoke 59829A1 Upper Unit 814819A2
$ 120.00
-Free Shipping On ALL Orders-

Fast & Free Shipping on All Orders!

14-Day Return Policy

Ships NEXT DAY at the Latest

Item Details & Compatibility

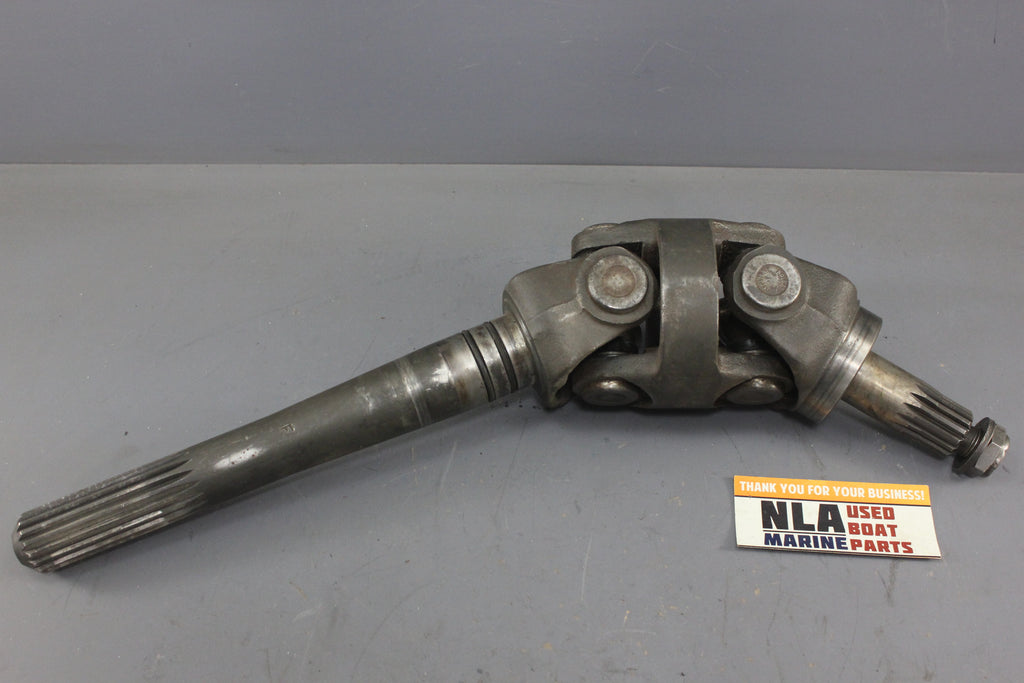

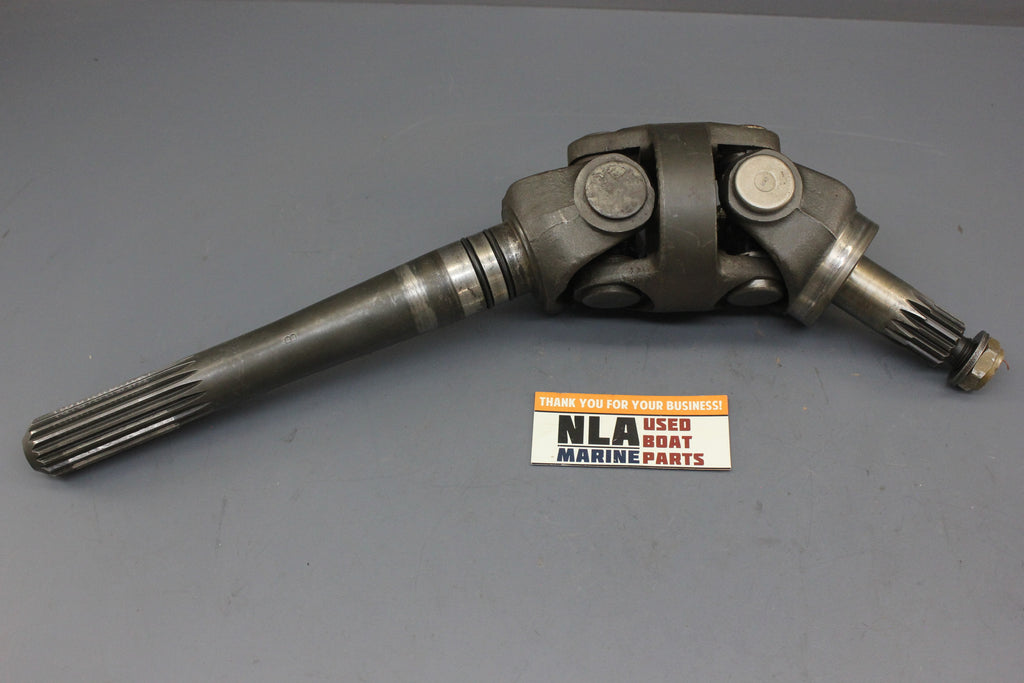

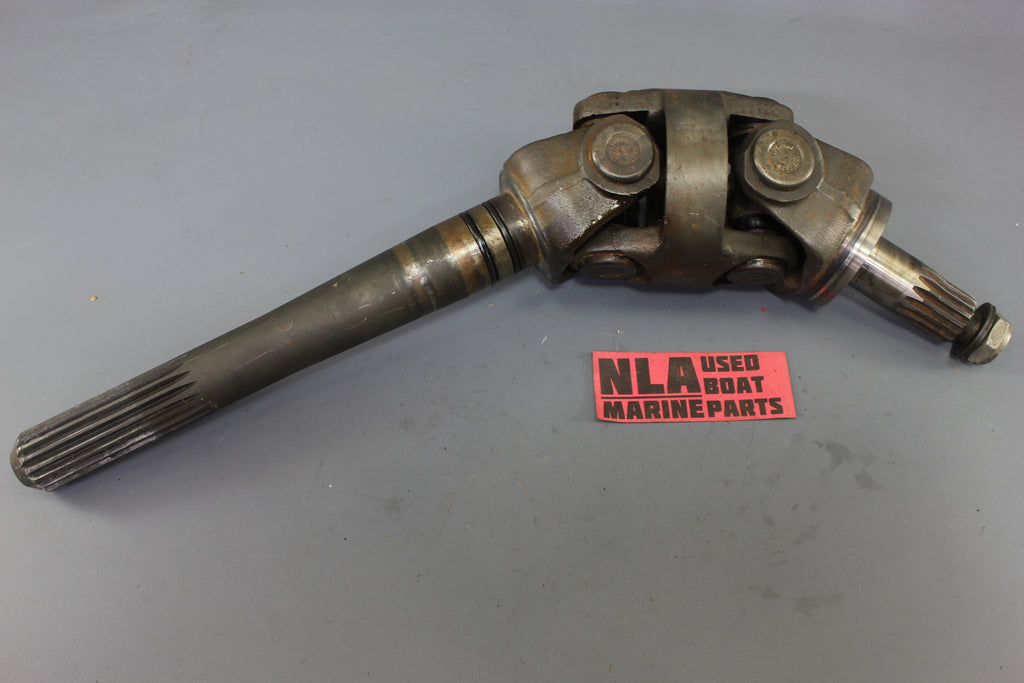

  • This is a complete Yoke Assembly for alpha one MR / Alpha One Gen I Sterndrives (1983-1990)
  • Also this would be compatible with 1971-1982 V8 305 / 350 Stern Drives only because of  the measurement of the yoke.
    • 1970-1982 MC-1 & R Drives on Inline engines used a shorter yoke which is not the one available here.
  • The same yoke / U-Joint assembly was used in the years described above regardless of engine / gear ratio of outdrive.
    • I.E. 120hp 2.5L / 140hp 3.0L / 165hp 4.1L, 470 / 165hp 3.7L 4cyl / 4.3L V6 / 305 5.0L V8 / 350 5.0L V8 / also the very rare instances of alpha ones paired with 454's
      • However take special note of the yoke length as described below.

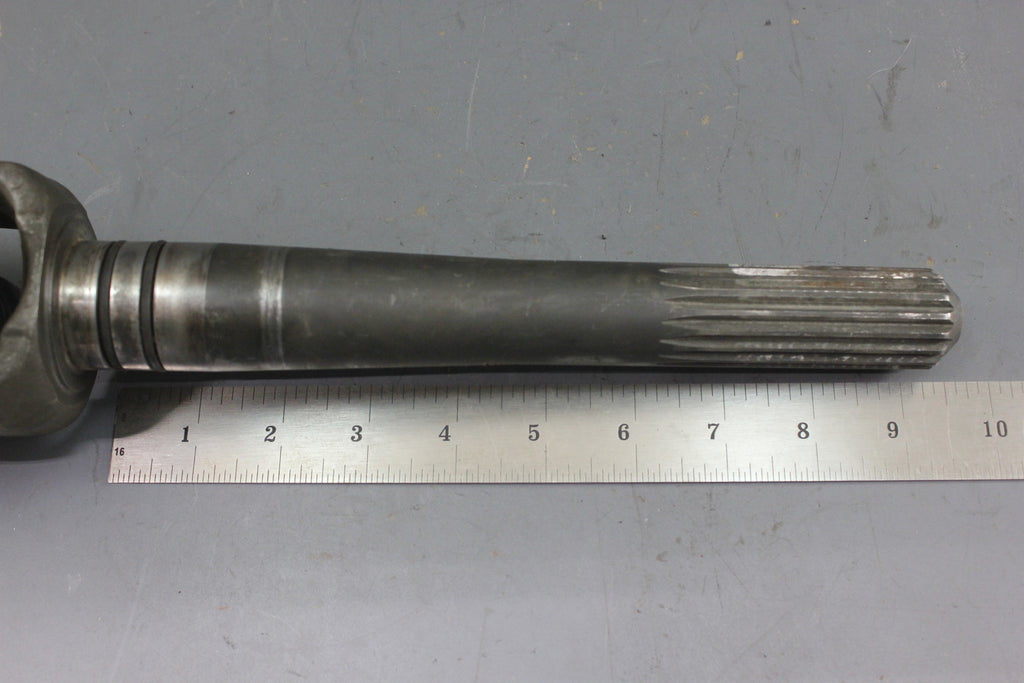

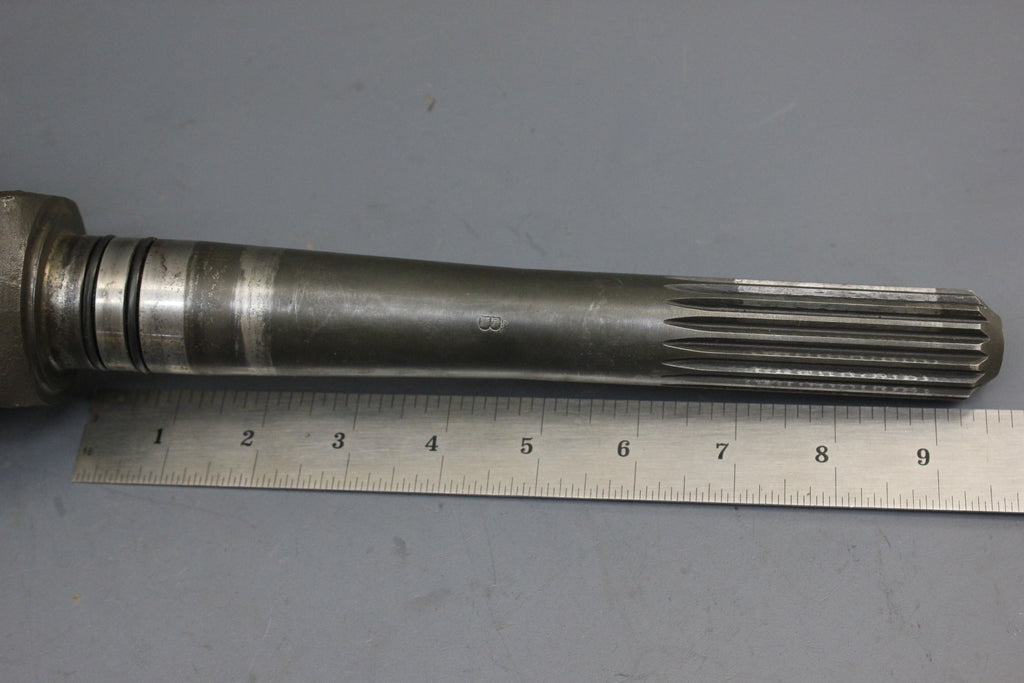

  • The Yoke on this measures 9-9/16”
  • Make sure that yours measures the same as if you have an inline (4 or 6 cyl engine pre-1983) it is likely that your yoke is the short model that measures 8-1/8” These are not interchangeable.

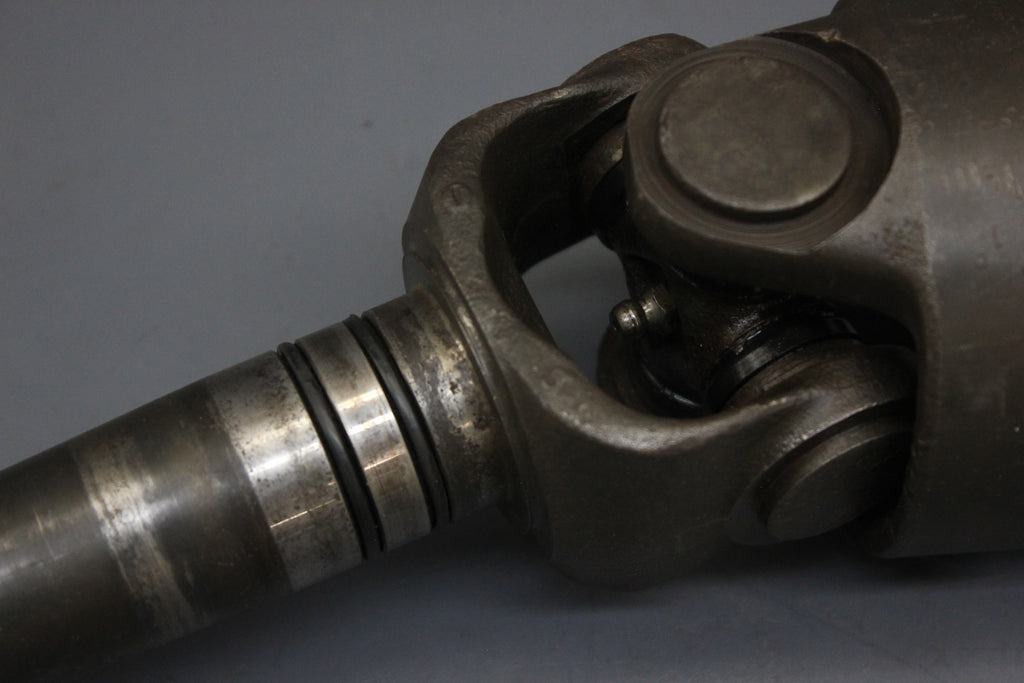

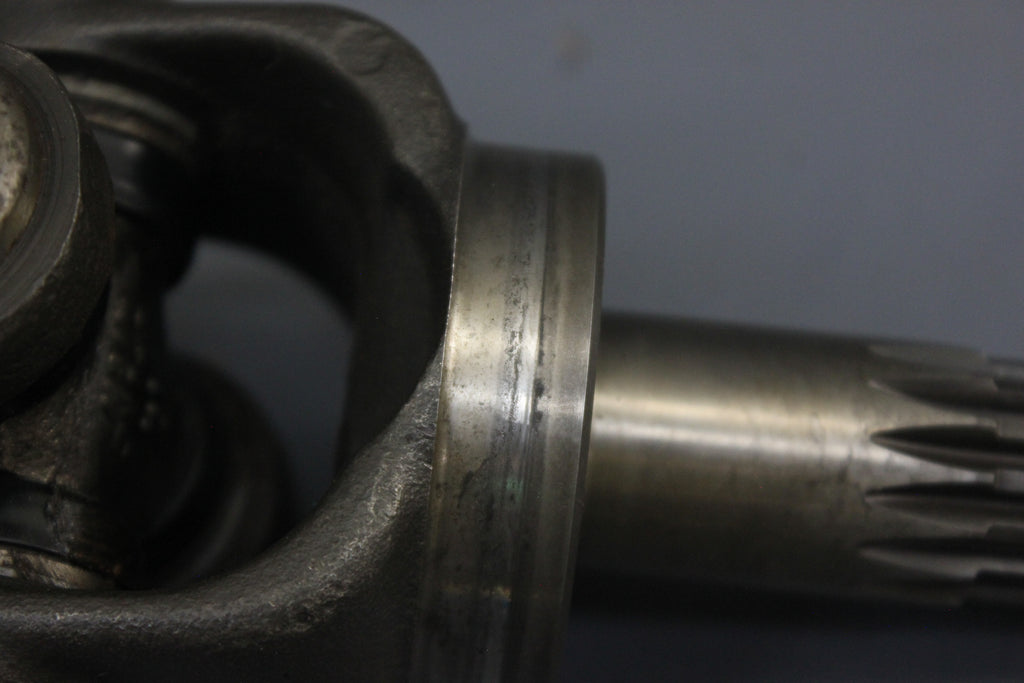

  • One other thing to take note is that MerCruiser added the extra o-ring around the middle of the yoke at some point in the late 80’s, however this shaft is still compatible in all of those systems as that o-ring was not imperative of function.

Notable & Relevant Part Number(s)

  • 814819A2 814819A3 Universal Joint Assembly
  • 59829A1 - Universal Joint Assembly V8 (1971-1982)
  • 59830A1 59830A7 - Yoke Assembly 9-9/16” (2-Groove Style
  • 39383 - Socket
  • 46020 - Yoke

Condition Notes

  • Overall Good Condition
  • Freshwater Used Parts

Additional Details

  • If you are unsure if this will work for you, please check with your motor's parts list or manual or just send me a message and I can quickly look this up for you or at least point you in the right direction.
  • Please Inspect Pictures closely to ensure satisfaction.
  • Please Contact Me if you have additional questions.
  • Purchase with confidence!
