Mercury 76509A3 Outboard Trim Tilt Hydraulic Cylinders Set 80hp-150hp
Part Number(s) Included

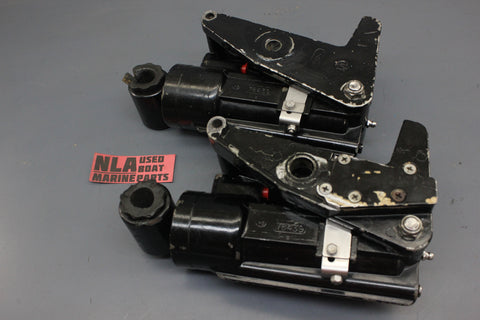

- 76509A3 Shock / Trim Cylinder Assembly (x2)
- These are the later (1" shaft) Trim Cylinder assemblies
- CASTING #78439
- 66084 Port Mounting Bracket
- 45196A2 (66083) Starboard Mounting Bracket
- 23-45281 Rubber Bushing
- The Long Black one found on earlier models before it was replaced by the shorter white ones
- No Cutout switch installed currently
General Application / Compatibility

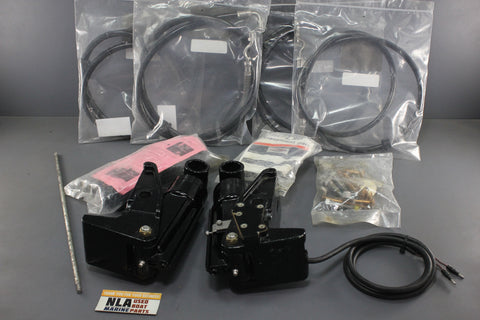

- This is set is effectively many of the major components of the "76509A12" Power Trim Kit based on everything that is included in here, which I believe is "Kit B" like this diagram here:
- As far as what this fits, this is where things get confusing in my research, The only model where I see a confluence of all of these parts is the mercury 1500 150hp 6cyl, but could be adapted to work with any early mercury outboards that accept this externally mounted style trim kit.
- The differences between all of the kits really comes down to the nuts and bolts of the included mounting hardware, so if you get stuck you could always piece your way to success by just following your outboard's respective parts diagram or at least comparing your diagram to the link mentioned above. Note that most of the later outboards were using the 1" diameter cylinder pistons, but ultimately they are still interchangeable.
