OMC Cobra Shift Cable 0987661 18-2245-1 Gimbal Bellows Kit and Adjustment Tools
Item Details:

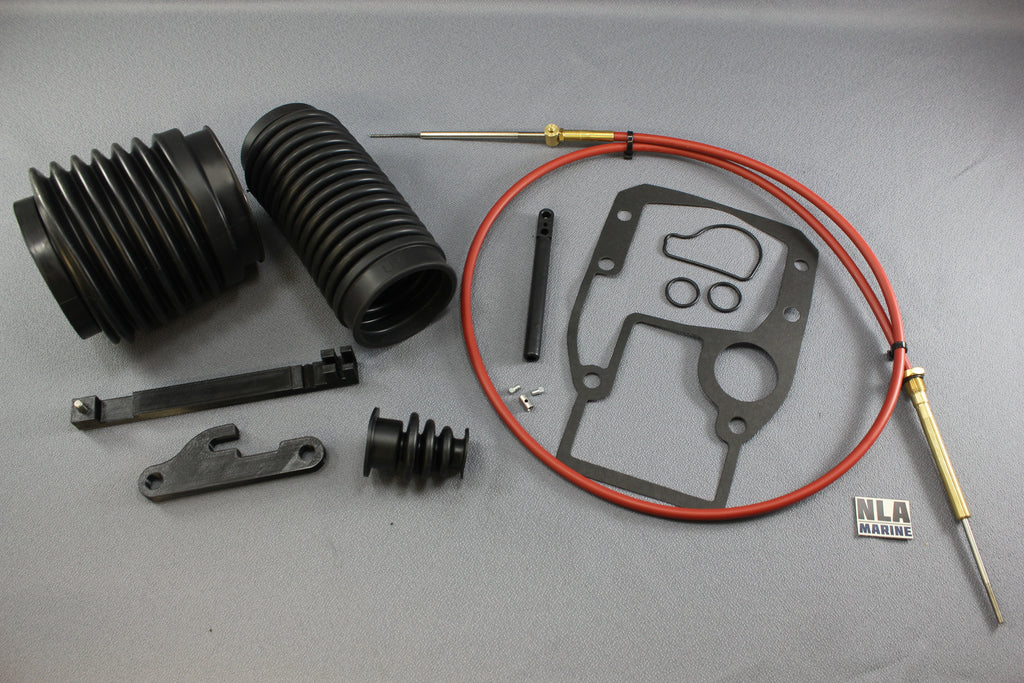

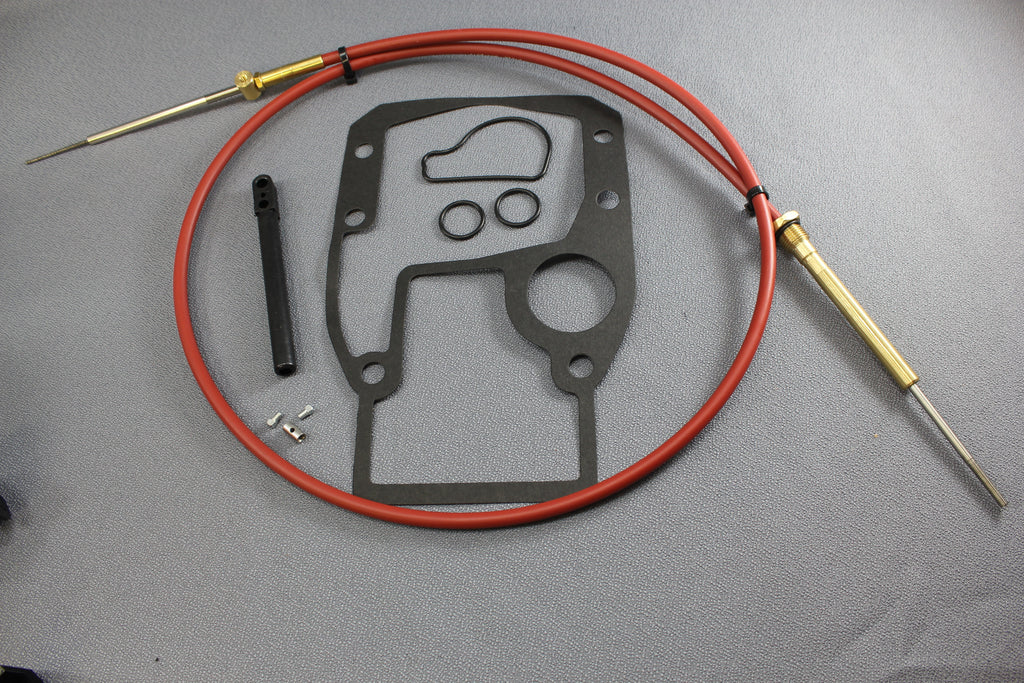

- This is the complete set you would need to properly replace your shift cable along with the exhaust and gimbal bearing drive bellows.
- You will receive everything in this set as pictured.
- Also Included is the proper special tools needed to adjust your newly installed shift cable.
Parts Included

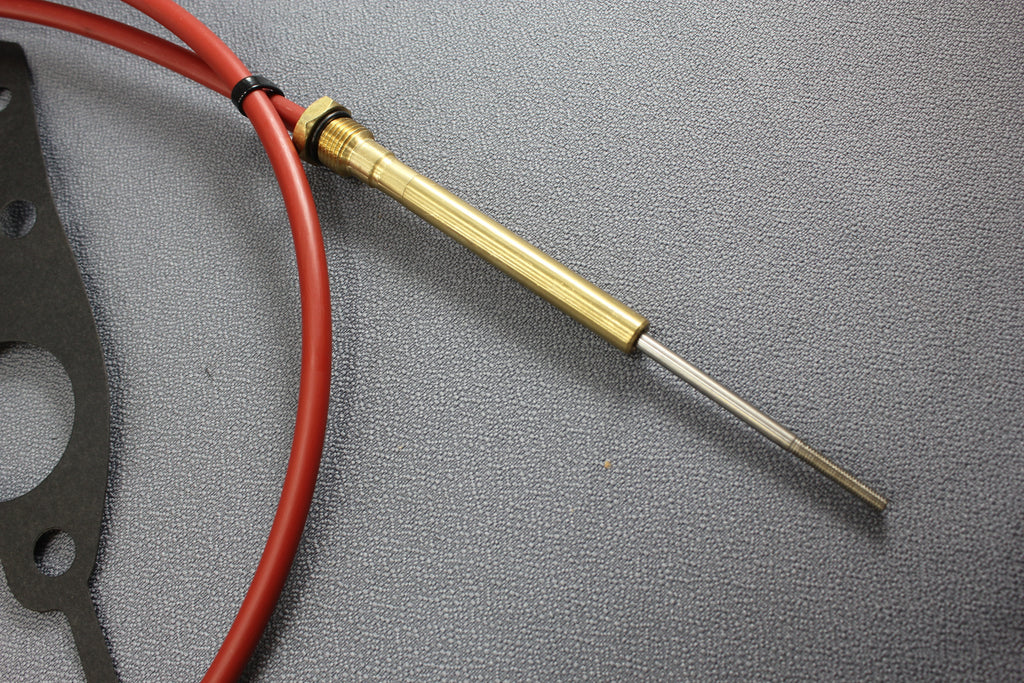

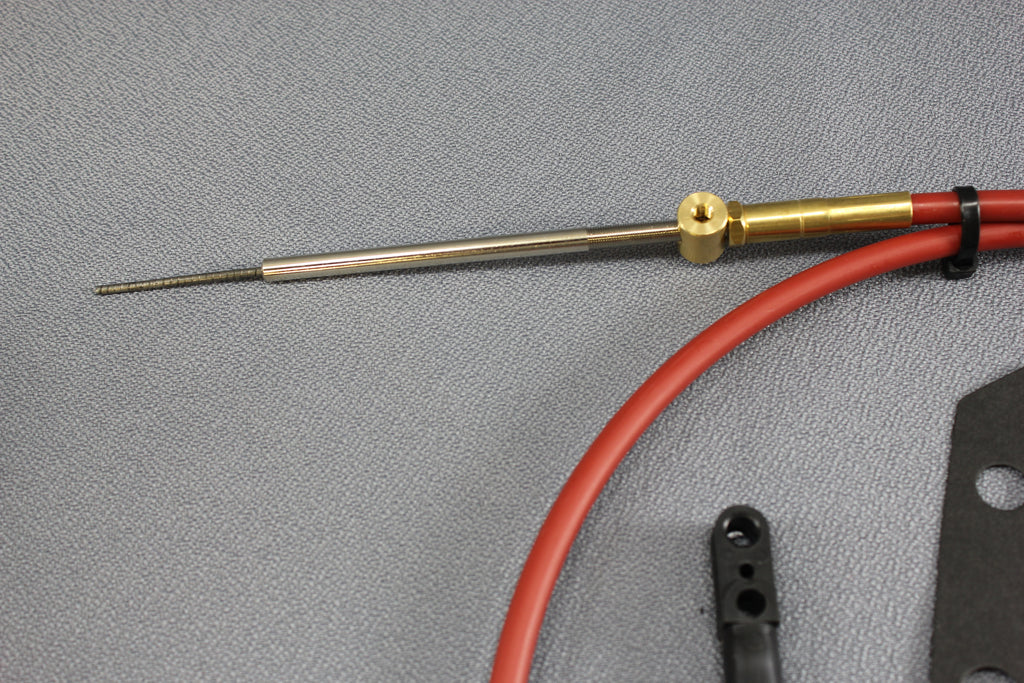

- OMC Shift Cable Sierra 18-2245-1 (1986-1987)* *See Disclaimer & (1988-1993)

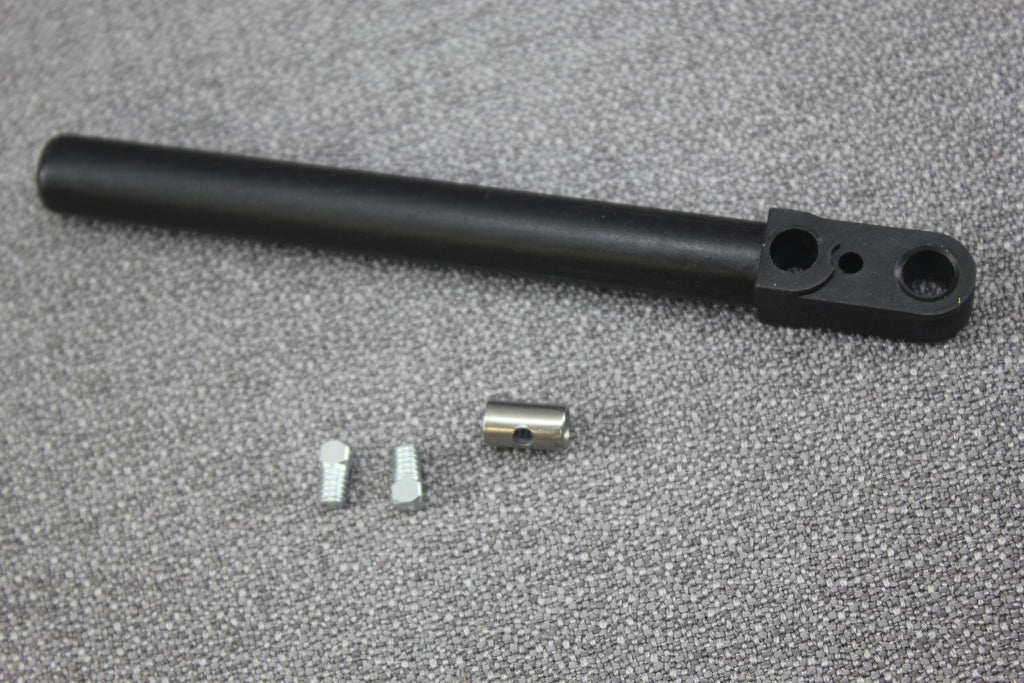

- *1986 & 1987 Models... You need to track down a different lever arm (985387) and the Cable anchor (914680/ 0914680) to be used properly with this cable. However, the cable itself never changed 1986-1993. The only difference was that the 1986-1987 used the 7-5/8" measurement (with stock lever arm) rather than the updated 7-9/16" like on the tool in conjuction with updated lever arm.
- *Replaces: 983950 / 0983950 / 986667 / 0986667 / 986955 / 0986955 / 987662 / 0987662 ---- These are all the numbers from 1986-1987 Models... See disclaimer above.
- Replaces 0985587 / 985587 / 0986654 / 986654 / 0987498 / 987498 / 0987661 / 987661 / Sierra 18-2245-1
- Does not work with 1993 Ford 5.0L & 5.8L EFI Models

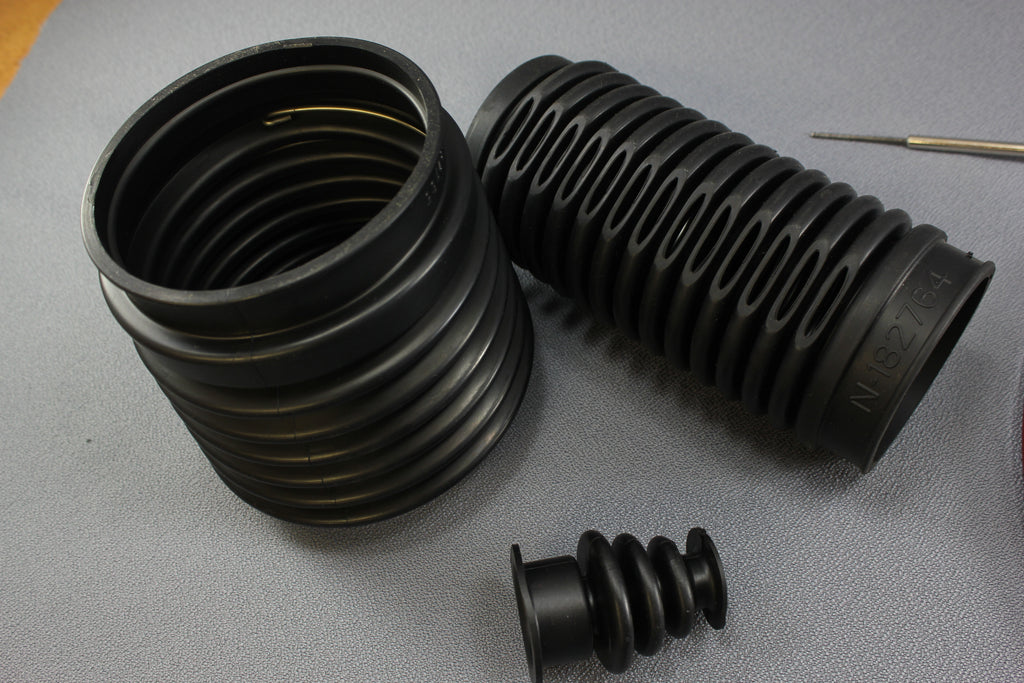

- U-Joint Bellows Sierra 18-2765
- Replaces 983973 / 0983973 / 987467 / 0987467 / 3854127
- Exhaust Bellows Sierra 18-2764
- Replaces 911814 / 0911814 / 911814 / 912950 / 0912950 / 914036 / 0914036
- Shift Cable Bellows Seal Sierra 18-2763
- Replaces 911826 / 0911826

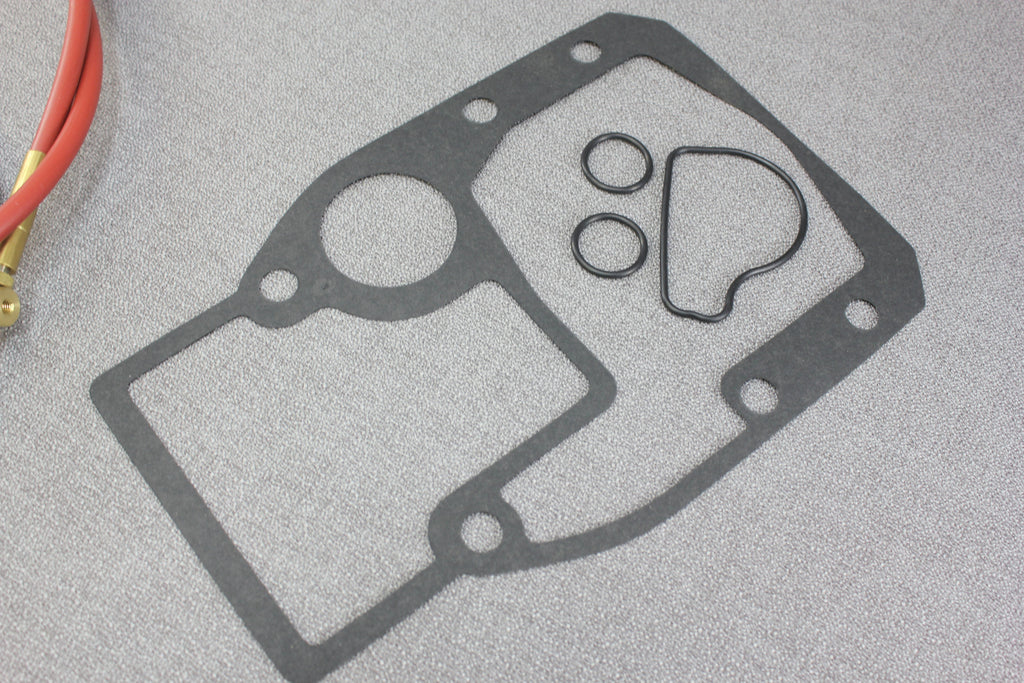

- Mounting Gasket Set 18-2918
- Replaces 915840 / 0915840

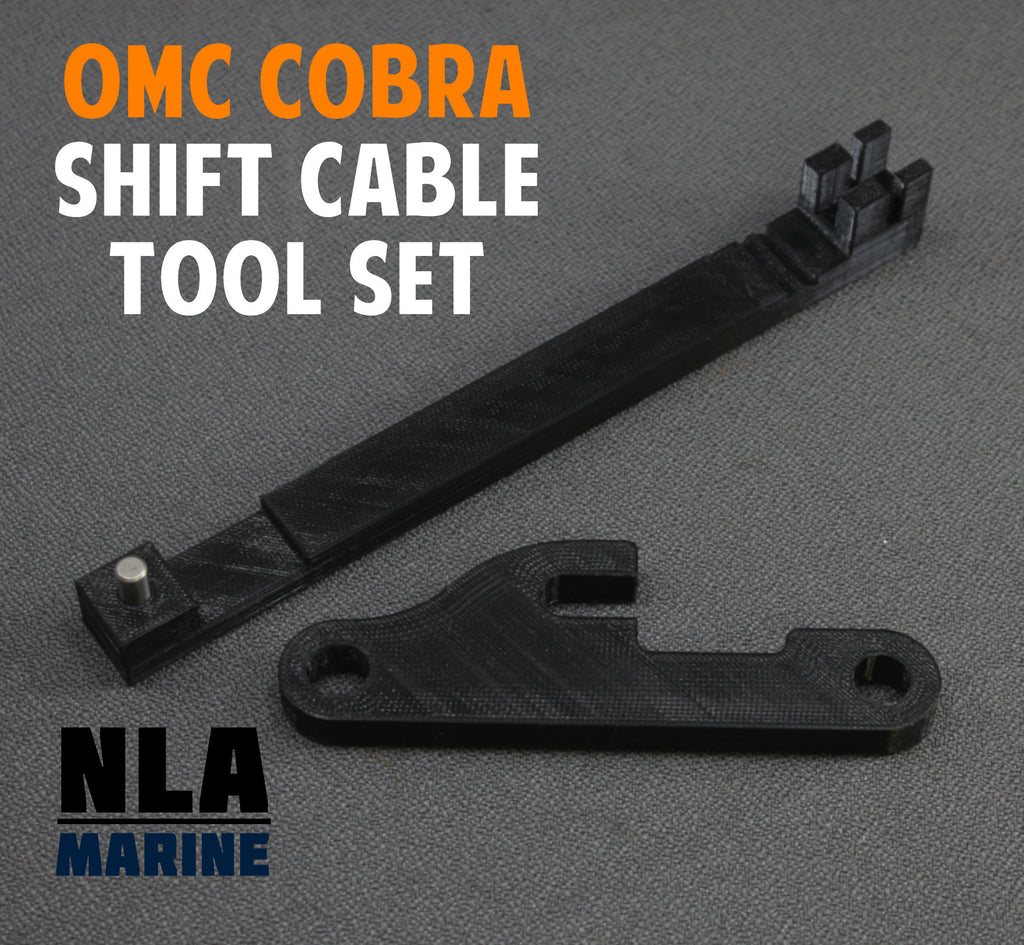

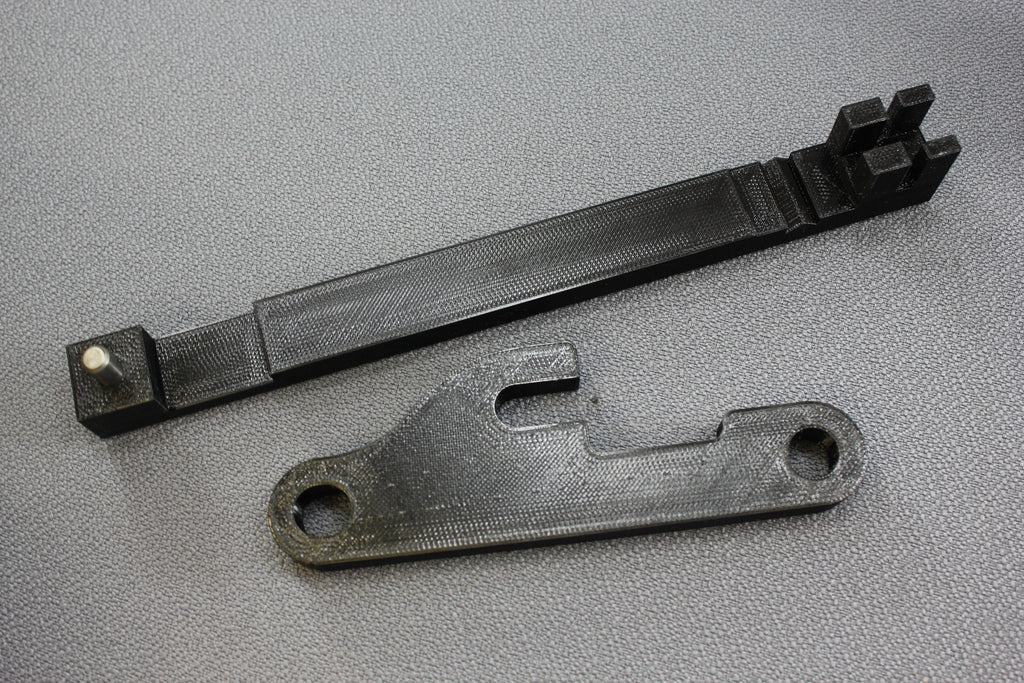

- OMC Shift Cable Tools
- This set replicates the functionality of the tools mentioned in the service manual.

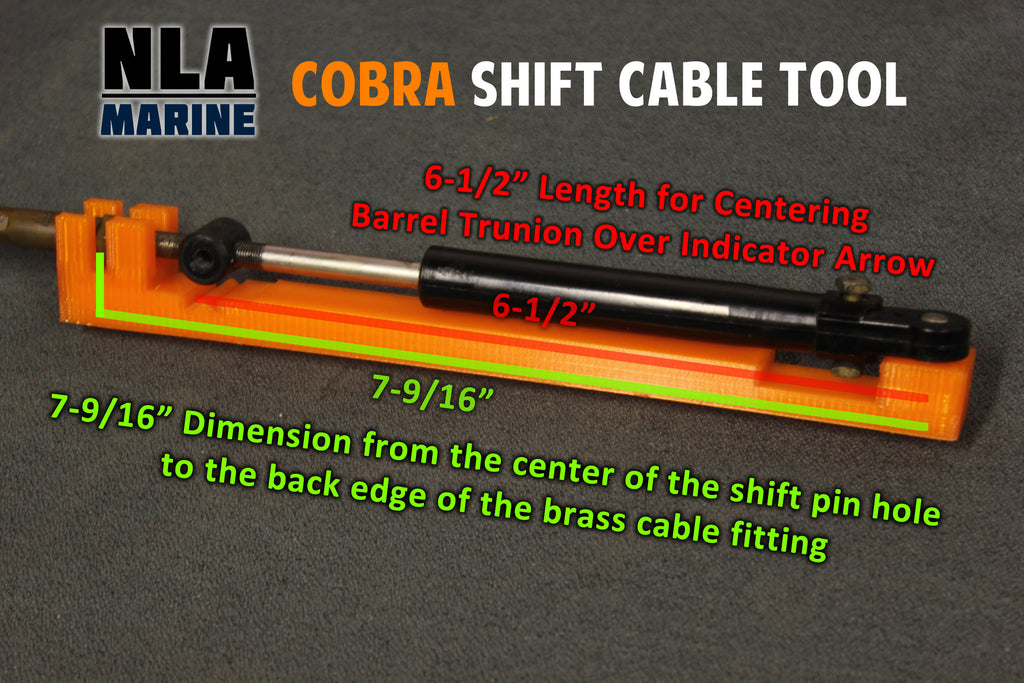

- 915271 Shift Cable tool
- 6-1/2" Dimension from the shift pin hole to the indicator arrow
- 7-9/16" Dimension from the center of the shift pin to the outer edge of the cable brass fitting nut.

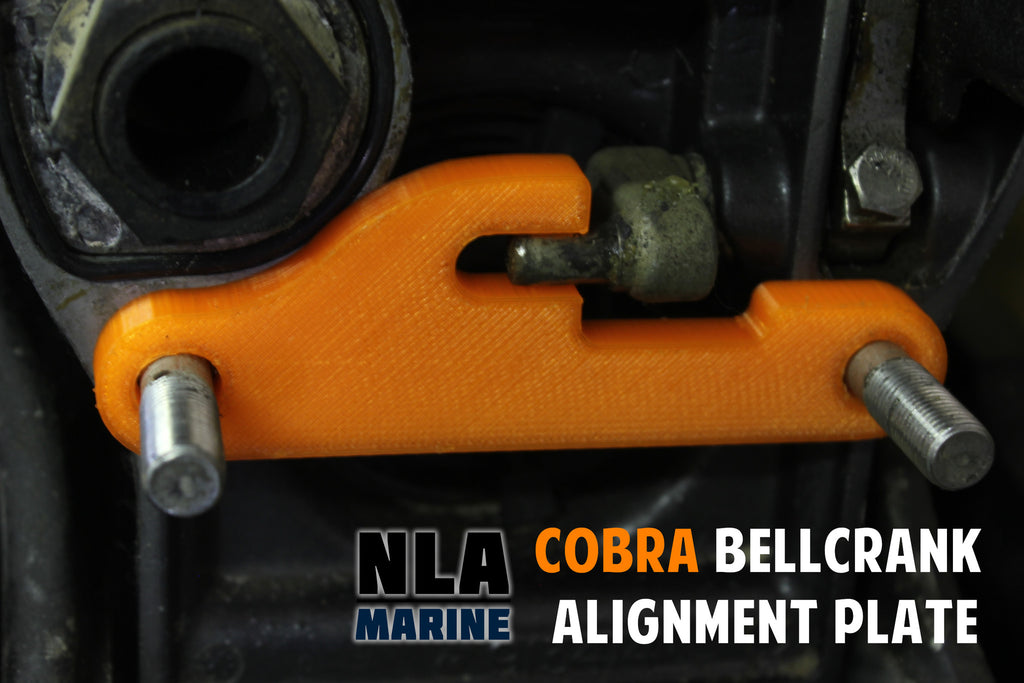

- 914017 OMC Bellcrank Alignment plate
- Slightly thicker than the original to capture the bell crank entirely.
- Constructed out extremely durable plastic.

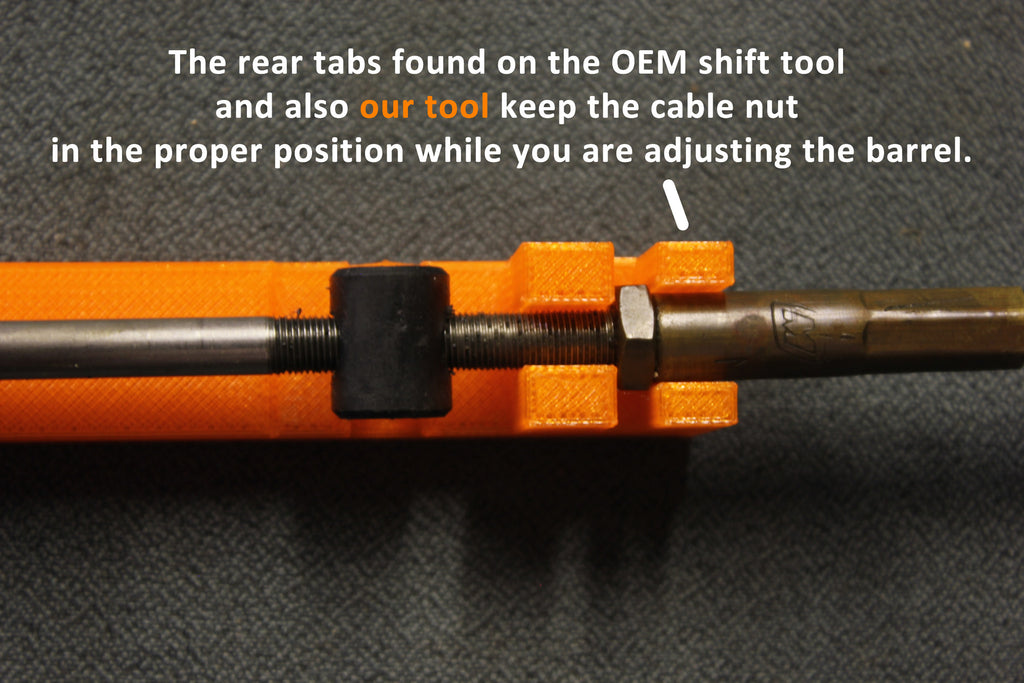

- Front & rear tabs on the shift tool (to position everything correctly) and stainless steel dowel to center the nut of the shift pin hole.
Purchase with confidence!
1986 1987 1988 1989 1990 1991 1992 1993
2.5L 120hp / 3.0L 140hp 4cyl / Ford 2.3L 4cyl / 4.3L V6 / 5.0L 305 V8 /5.7L 350 Chevy GM V8 260 / 5.0L 302 Ford V8 / 5.8L 351 Ford V8 / 7.5L 460 Transom
